Dual Coil Toroidal Inductor 3D Model
Electronics & Gadgets
Inductor
Toroidal Inductor
electronics
Component
Coil
Ferrite Core
Game Development
Education & Training
E-commerce Product Viewer
3D Printing
A detailed 3D model of a dual-coil toroidal inductor, perfect for electronic schematics, educational displays, and technical visualizations.
3D
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Dual Coil Toroidal Inductor 3D Model

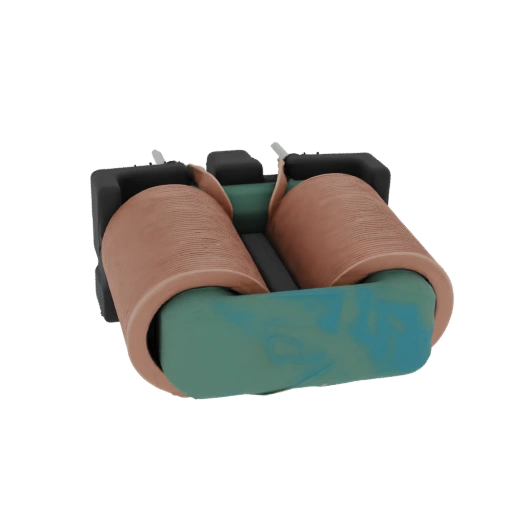

3D model of a dual-coil toroidal inductor with copper windings and a green ferrite core, mounted on a black base with pins.
Model details
- Access Free download
Description
Overview and production context
This 3D model accurately represents a dual-coil toroidal inductor, a common electronic component. It features two distinct copper wire windings wrapped around a green ferrite toroidal core. The model highlights the intricate winding pattern and the characteristic donut shape of the core. The black plastic base with integrated pins provides mounting points, typical for through-hole or surface-mount applications. This model is suitable for use in electronic circuit simulations, educational materials explaining electromagnetic principles, or as a visual asset in technical renderings and presentations.
How to use this model
Use cases, fit and pre-production checks
This dual-coil toroidal inductor 3D model is designed for versatility. For 3D printing, it can be scaled to various sizes, though smaller scales may require supports for the pins and the core's underside. Printing in PLA or ABS is recommended for durability. In game development and AR/VR applications, this model can serve as an interactive electronic component, enhancing the realism of virtual environments or educational simulations. It's ideal for virtual labs, repair simulations, or as a prop in sci-fi or industrial settings. For rendering and visualization, the detailed textures and geometry allow for photorealistic integration into product designs, circuit board mockups, or technical diagrams.
FAQ
Answers for this exact model page
What are the key visual features of this toroidal inductor model?
The model prominently displays two copper wire coils wound around a distinct green toroidal ferrite core, with a black plastic base featuring mounting pins.
How can this inductor model be used in educational contexts?
It's excellent for teaching about electromagnetism, circuit design, and the function of inductors. It can be used in interactive simulations, virtual lab environments, or as a visual aid in presentations.
What are the recommended printing considerations for this model?
While printable, scaling down significantly might require supports for the pins and the underside of the core. PLA or ABS are suitable materials for a durable print.
Is this model suitable for AR/VR applications?
Yes, its detailed geometry and realistic appearance make it well-suited for AR/VR experiences, such as virtual electronic assembly or interactive product showcases.
