Industrial Flanged Pipe Connector 3D Model
Industrial, Tools & Machinery
Industrial parts
industrial
Pipe
Connector
Flange
Engineering
machinery
3D Printing
Game Development
Architecture Visualization
Product Design
A detailed 3D model of a robust industrial flanged pipe connector, featuring a distinct flange and cylindrical body, ideal for technical and industrial applications.
Loading model...
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Industrial Flanged Pipe Connector 3D Model

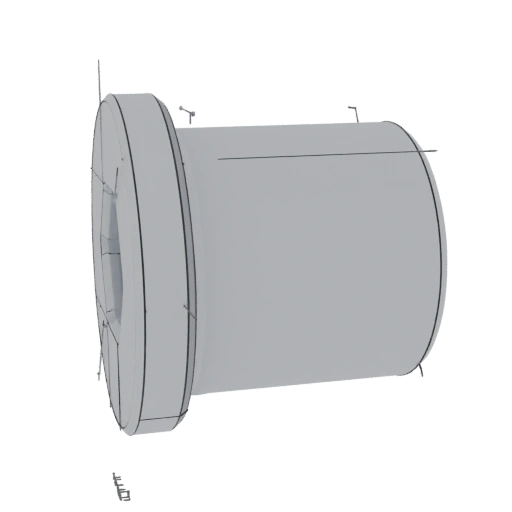

3D model of a gray industrial flanged pipe connector with a circular flange and cylindrical body, set against a white background.
Model details
- Subcategory Industrial parts
- Access Free download
Description
Overview and production context
This 3D model accurately represents an industrial flanged pipe connector, a crucial component in various piping systems. The design showcases a prominent, circular flange with bolt holes, designed for secure connection to other pipes or equipment. Extending from the flange is a cylindrical pipe section, rendered with clean lines and a smooth surface. The model's neutral gray material and precise geometry make it suitable for technical visualizations, architectural mock-ups, or as a realistic prop in industrial settings. Its robust appearance suggests durability and functionality, characteristic of heavy-duty engineering components.
How to use this model
Use cases, fit and pre-production checks
This industrial flanged pipe connector 3D model is optimized for 3D printing, with the 'True' printable setting indicating it's ready for production on FDM or resin printers. Consider printing at a scale that suits your project, such as 1:10 or 1:20 for detailed dioramas, or larger for standalone display pieces. Ensure adequate supports are used, especially around the flange and any internal details, depending on your printer's capabilities. The model is also well-suited for game development and AR/VR applications, where its realistic geometry can enhance virtual environments. Its clean topology ensures good performance in real-time rendering engines, making it a valuable asset for industrial simulations or virtual tours of facilities.
FAQ
Answers for this exact model page
What are the key features of this industrial pipe connector model?
The model features a distinct circular flange with bolt hole details and a smooth, cylindrical pipe section, rendered in a neutral gray material for a realistic industrial look.
What scale is recommended for 3D printing this pipe connector?
While printable at various scales, consider 1:10 or 1:20 for detailed dioramas or larger for standalone display. Ensure supports are used appropriately for the flange and internal geometry.
How can this model be used in virtual environments like games or AR/VR?
Its clean geometry and realistic appearance make it ideal for enhancing virtual industrial settings, simulations, or AR product visualizations, offering good real-time performance.
