Detailed 3D model of the inner trunk handle, designed specifically for the Mazda CX-5 2013 (KE body).
3D
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Mazda CX-5 2013 (KE) Inner Trunk Handle for 3D Printing

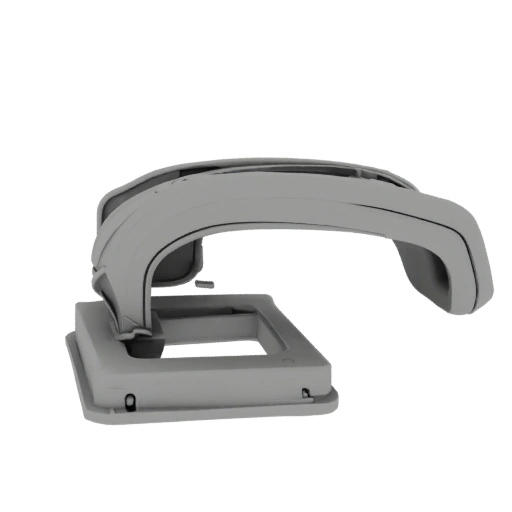

3D model of inner trunk handle for Mazda CX-5 2013 (KE), side view
Model details
- Subcategory Vehicle Parts
- Access Free download
Description
Overview and production context
Introducing a high-precision 3D model of the inner trunk closing handle, created for the Mazda CX-5 2013 (KE body). The model precisely matches OEM part GJ6A‑68‑966 and has an overall height of 119 mm. The 45x35 mm base ensures secure fitting, and the central rectangular slot (25x12 mm) is for the mechanism latch. Its ergonomic, slightly curved shape guarantees a comfortable grip, while the 2–3 mm wall thickness ensures durability without excess weight. The model is fully waterproof and ready for 3D printing.
How to use this model
Use cases, fit and pre-production checks
This 3D model is ideal for 3D printing as a replacement or custom part. UV-resistant and temperature-stable materials like ABS or PETG are recommended. Supports may be needed for overhangs, especially on the handle's curve. Scaling is possible, but proportions and functionality should be considered. The model can also serve as a prop for photoshoots or as decor in a car enthusiast's workshop.
Due to its detail and accuracy, the model is excellent for games, AR/VR applications, or 3D modeling visualization. It can be integrated into car-themed game scenes or used for realistic AR interior presentations. For game engines, conversion to FBX or GLB is recommended for performance optimization.
FAQ
Answers for this exact model page
What are the exact dimensions of the base and the slot for the mechanism latch?
The base measures 45x35 mm, and the central rectangular slot is 25x12 mm, ensuring an exact fit with the original mechanism.
What materials are best for 3D printing this handle?
For maximum strength and durability, ABS or PETG are recommended. These materials are resistant to mechanical stress and temperature fluctuations, crucial for automotive parts.
Can this model be used for printing at a scale other than 1:1?
The model is designed for 1:1 scale printing as a replacement for the original part. Scaling is possible, but may require size adjustments and functionality checks, especially for smaller versions.
Are special settings required for 3D printing this part?
The model is waterproof and print-ready. Supports are recommended for overhangs, particularly on the handle's curve, to ensure a smooth surface and prevent deformation.
