Complex mechanical assembly with a collet clamp, representing an engineering solution for fixation.
Loading model...
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Mechanical Assembly with Collet Clamp

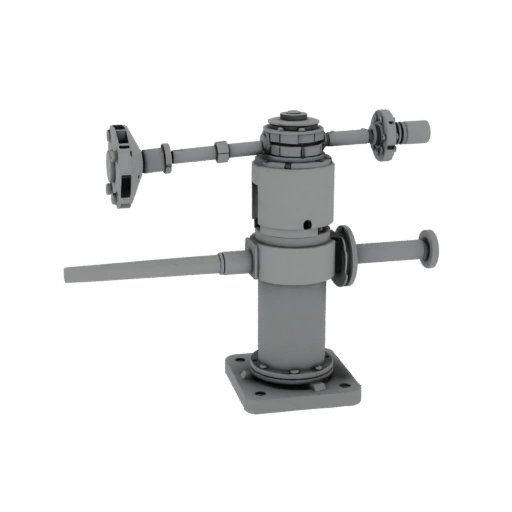

3D model of mechanical assembly with collet clamp, showing shaft, collet, and support flange.
Model details
- Subcategory Industrial parts
- Access Free download
Description
Overview and production context
This 3D model depicts a complex mechanical assembly designed for precise fixation. The central element is a stepped shaft mounted on bearings to eliminate play. A replaceable expanding collet is attached to the shaft, actuated by a conical rod and an eccentric lever. A support flange is also fixed to the shaft, providing pressure during collet expansion. The model is rendered in a gray monochrome color, emphasizing its technical nature and detail.
How to use this model
Use cases, fit and pre-production checks
The model is ideal for 3D printing due to its well-developed design. It is recommended to print with durable materials like ABS or PETG, using supports for overhanging elements. The print scale can vary depending on the purpose, from miniature models to full-size demonstration samples.
In the gaming industry and for AR/VR applications, this model can serve as a component of a mechanism, industrial equipment, or a futuristic device. High detail allows its use in scenes requiring realism. For designers and engineers, the model can be useful as a reference or a component in more complex assemblies.
FAQ
Answers for this exact model page
What is the main purpose of this mechanical assembly?
This mechanical assembly is designed for precise fixation, using the principle of an expanding collet actuated by a rod and an eccentric lever.
What design features distinguish this 3D model?
The model features a detailed stepped shaft on bearings, a replaceable collet with a conical rod, and a support flange, ensuring high precision and functionality.
Can this model be used as an interactive element in games or AR/VR?
Yes, due to its high detail and clear structure, the model is well-suited for integration into game engines and AR/VR applications, where it can function as a mechanical mechanism.
What materials are recommended for 3D printing this model?
For 3D printing, it is recommended to use durable plastics such as ABS or PETG, with the use of supports to ensure the quality of printing complex elements.
