Rough-Edged Square Fan Mount with Bolt Holes
Industrial, Tools & Machinery
Fan Mount
3d printable
Pc Cooling
Industrial Design
Textured Surface
Hardware
3D Printing
Game Development
Product Design
E-commerce Product Viewer
A square fan mount featuring a unique, rough-textured outer edge and four precisely placed bolt holes for secure attachment.
3D
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Rough-Edged Square Fan Mount with Bolt Holes

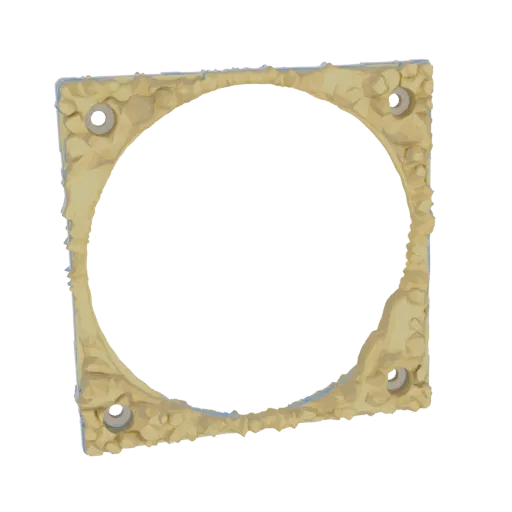

3D model of a square fan mount with a rough, textured edge and four bolt holes, viewed from a slight angle.
Model details
- Access Free download
Description
Overview and production context
This 3D model depicts a square fan mount designed with a distinctive, uneven outer edge that gives it a rugged, industrial aesthetic. The central circular opening is perfectly sized for a standard fan, while the four corner holes are accurately placed for mounting screws. The textured surface adds a unique visual element, making it stand out from typical smooth-surfaced components. This model is ideal for projects requiring a functional yet visually interesting fan mounting solution.
How to use this model
Use cases, fit and pre-production checks
This fan mount is 3D printable, making it an excellent choice for custom PC builds, DIY electronics projects, or as a replacement part. It can be printed at various scales depending on your needs, though a 1:1 scale is recommended for standard fan sizes. Consider using materials like PLA or PETG for good durability and heat resistance. Minimal supports may be required for the bolt holes depending on your printer's capabilities. Ensure proper calibration for clean prints.
For game development or AR/VR applications, this model can serve as a prop in industrial environments, workshops, or futuristic tech scenes. Its detailed texture adds realism, and its straightforward geometry ensures good performance. It can be easily integrated into existing game engines or AR/VR platforms. For display purposes, consider painting it with metallic or weathered finishes to enhance its rugged appearance.
FAQ
Answers for this exact model page
What is the primary function of this fan mount model?
This model is designed to securely mount a fan in place, commonly used in computer cases, electronics enclosures, or other cooling applications where a fan needs to be attached to a surface.
What makes the design of this fan mount unique?
The distinctive feature of this fan mount is its rough, uneven outer edge, which provides a rugged and industrial aesthetic, setting it apart from standard, smooth-edged mounts.
What are the recommended printing materials and settings for this fan mount?
For optimal results, printing with PLA or PETG is recommended. Consider using a layer height of 0.15-0.2mm and ensure your printer is well-calibrated for clean details on the textured edges and bolt holes.
Can this fan mount be used for custom PC builds?
Yes, this model is ideal for custom PC builds, allowing for unique aesthetic choices with its textured finish and providing a functional solution for fan placement and cooling.
