Functional 3D-printed wall-mounted router box with a flip-up door and optimized ventilation, designed for neat equipment placement.
3D
Preview can be downloaded for free. Full quality is available after registration for 1 credit.
Preview is free. Full quality requires registration and 1 credit.
Wall-mounted router box with flip-up door and ventilation

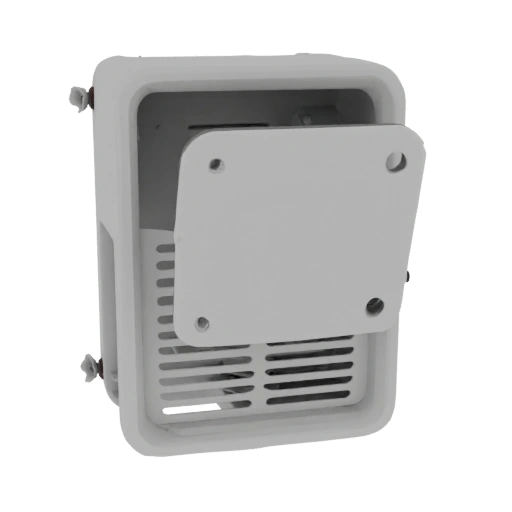

3D model of a wall-mounted router box with the door open, showing ventilation holes and interior space.
Model details
- Subcategory Smart home devices
- Access Free download
Description
Overview and production context
Introducing a 3D model of a wall-mounted box specifically designed for housing WiFi routers and other network equipment. The enclosure features a modern minimalist style with smooth surfaces and clean lines. A flip-up door, mounted on hidden hinges, provides convenient access to the device, while the lower part is equipped with slots for effective ventilation, preventing router overheating. The model also includes holes for secure wall mounting.
How to use this model
Use cases, fit and pre-production checks
This model is ideal for 3D printing due to its simple design and lack of complex overhangs, minimizing the need for supports. It's recommended to print with PLA or PETG plastic with a wall thickness of 5 mm, as specified in the original request, for durability and longevity. Scaling is possible, but consider the original dimensions (300x200x37 mm) when choosing the optimal size for your router. The model is also excellent for use in gaming projects, AR/VR applications, or for creating realistic interior renders requiring neat placement of electronic devices.
FAQ
Answers for this exact model page
What are the main dimensions of this 3D router box model?
The model dimensions are 300 mm in length (X-axis), 200 mm in height (Z-axis), and 37 mm in width (Y-axis), making it suitable for most standard WiFi routers.
How are the door and ventilation implemented in this model?
The door flips upwards on hidden hinges for easy access. The lower part of the enclosure has special slots for effective airflow and to prevent router overheating.
Can this model be used for 3D printing?
Yes, the model is fully optimized for 3D printing. It's recommended to print with a 5 mm wall thickness, as specified in the original request, for maximum strength and functionality.
What purposes, besides 3D printing, is this model suitable for?
The model is excellent for use in game development, AR/VR applications, and for creating realistic interior renders where neat and aesthetic placement of network equipment is required.
